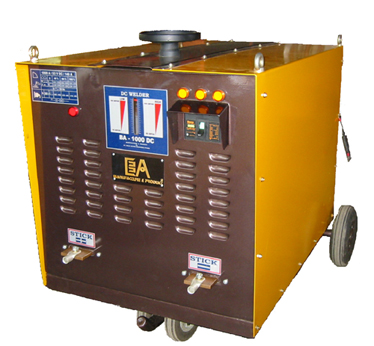

BA 1000 - DC
BA 1000 – DC is a type of welding transformer for welding transformer for DC welding capable of supporting work of very high capacity for welding Gouging and Stick (common welding rod) and designed for heavy duty work giving the very satisfactorily result of welding and Gouging. In addition, BA 1000 DC has the usage capacity 100% and compensating capacity especially designed such that beyond the work capacity included in the specifications that make this product with a better capacity work. A quality feature of this product is usage intensity of current that much more economic become either symbol quality of PT. Baja Agung Kharisma Utama, and makes it superior to the other products that available commercially.
Specification
Current Range (A) |
180 – 1000 |
Duty cycle (%) |
80 |
No Load Voltage (V) |
80 – 100 |
Load Voltage (V) |
35 – 53 |
Electrodes diameter (mm) |
3,2 – 10 |
Voltage (V) |
380 |
Phase ( ~ ) |
3 |
Frequency (Hz) |
50 |
Input power/standby (KW) |
0,34 – 1,9 |
Input power (KVA) |
35 – 53,3 |
Input Cable (mm x 3) |
25 |
Welding Cable (mm 2) |
120 |
Dimension w x d x h (cm) |
93 x 100 x 100 |
Weight (Kg) |
± 495 |
Application
• Heavy Fabrication
Examples:
- Mining Industry
- Farm / Ranch
- Heavy Construction
- Heavy Industry |
- Ship Building
- Job Shops and Maintenance
- Others heavy industry |
Use normal welding electrode 8 mm, examples:
AWS E – 6013
AWS E – 7018
AWS 7018 – 1
AWS E 308 L – 16
AWS E 316 L – 16
AWS E Fe 5B
AWS E Fe M n – B
AWS E Ni Fe – C1
AWS E Ni CUB
DIN 855 : E6 – 55
|
DIN E8 – 200 CKz
AWS E 312 – 16
AWS E 9018 - 01
DIN 855 : E6 – E55
AWS E Fe Cr AI
DIN E3 – 50S
AWS Fe Mn – A
DIN 1855 : E23 – 200 CKz
DIN 1732 : SA1 Mn
|
|
|
